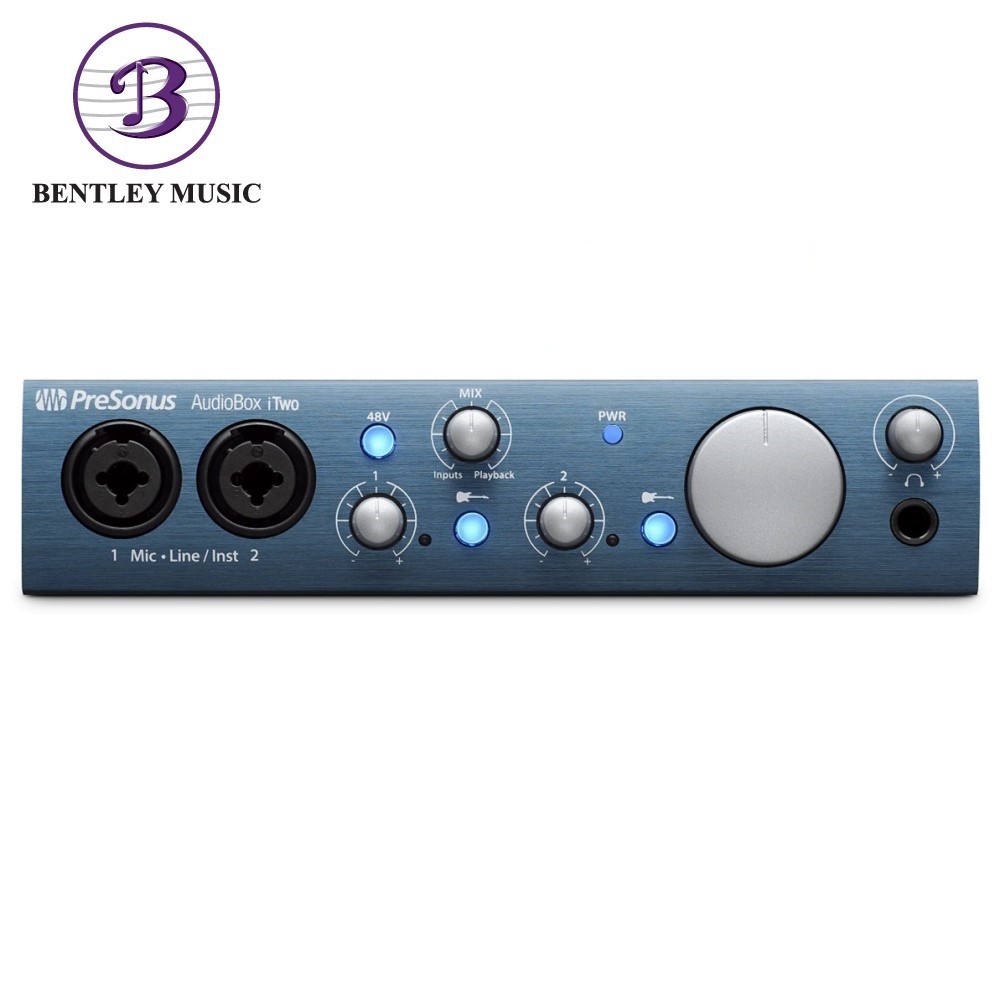

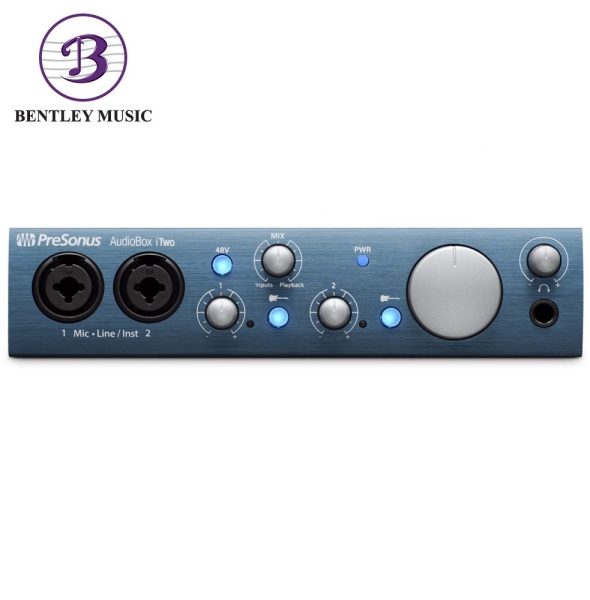

PreSonus AudioBox iTwo: The USB/iPad Audio Interface for Mobile Producers
RM725.00 RM645.00
An excellent choice for mobile musicians, sound designers, and podcasters, the USB 2.0 bus-powered PreSonus AudioBox iTwo audio interface provides two combo mic and switchable line/instrument inputs with a high-performance mic preamplifier, so you can record synths, guitars, and anything you can capture with mics. MIDI I/O lets you connect your favorite synth or MIDI controller. The compact, ruggedly built AudioBox iTwo is compatible with Mac, Windows PC, and Apple iPad and is bundled with powerful, easy-to-use recording software, making it a complete, multiplatform recording solution.
Model: AudioBox iTwo
- Features
- Specifications
Core Technology
- Bus-powered USB 2.0/iPad audio interface
- 24-bit resolution; 44.1, 48, 88.2, and 96 kHz sampling rate
Inputs and Outputs
- 2 microphone inputs with low-noise, high-headroom, Class A mic preamplifiers and +48V phantom power
- 2 switchable line/instrument inputs
- 2 balanced ¼” TRS main line-level outputs
- 1×1 MIDI In/Out
- Stereo headphone output with independent level control
Controls
- Zero-latency monitoring via internal analog mixer (variable mix via Mix knob)
- Large main volume knob
- Signal present and clipping LEDs
Integrated Software
- Studio One Artist DAW software (Mac/Windows) and 6+ GB of third-party resources
- Transfer files wirelessly from Capture for iPad to Studio One
- Compatible with almost all recording software for Mac, Windows, and iPad
- Studio Magic Plug-in Suite included
Construction and Security
- Kensington lock hole
- Metal chassis
Computer system requirements:
Below are the minimum computer-system requirements for the AudioBox iTwo:
Windows
- Windows 7 x64 SP1 + platform update, Windows 8.1 x64, Windows 10 x64
- Intel Core Duo processor (Intel Core i3 or better recommended)
- 4 GB RAM (8 GB or more recommended)
Mac
- macOS 10.11 or higher (64-bit only)
- Intel Core Duo processor (Intel Core i3 or better recommended)
- 4 GB RAM (8 GB or more recommended)
Windows and Mac Systems
- USB 2.0 Port
- Internet connection for registration and download of included software
- Internal or external 7200 RPM storage drive highly recommended
- Monitor with at least 1280×800 resolution
Apple iPad
- iPad Pro, iPad Air, iPad mini with Retina display, iPad (4th generation)
- iOS 10 or later
The minimum system requirements may differ for DAWs other than Studio One. Please check the requirements for your DAW of choice with its manufacturer.
Note that the speed of your processor, amount of RAM and size and speed of your hard drive will greatly affect the overall performance of your recording system. Also, a more powerful system (faster processor with more RAM) will allow for lower latency (signal delay) than you might experience while monitoring audio or MIDI signals. Monitor resolution for both PC and Macintosh should be no lower than 1024×768 pixels.
| Microphone Preamp | |
| Type | XLR female, balanced |
| Frequency Response (±3.0 dB) | 20 Hz to 20 kHz |
| Input Impedance (Balanced) | 1,200Ω |
| THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain) | < 0.008% |
| S/N Ratio (Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz) | > 95 dB |
| Common Mode Rejection Ratio (1 kHz, 52 dB Gain) | — |
| Gain Control Range (± 1 dB) | 0 dB to 52 dB |
| Max Input Level (Unity Gain, 1 kHz @ 0.5% THD+N) | +10 dBu |
| Phantom Power (±2 VDC) | +48 VDC |
| Line Input | |
| Type | ¼” TRS female, balanced |
| Input Impedance | 10 kΩ |
| Instrument Input | |
| Type | ¼” TS female, unbalanced |
| Input Impedance | 1 MΩ |
| Line Outputs | |
| Type | ¼” TRS female, balanced |
| Output Impedance | 51Ω |
| Headphone Output | |
| Type | ¼” TRS active stereo |
| Maximum Output | 60 mW/ch. @ 60Ω Load |
| Frequency Response (±1.0 dB) | 20 Hz – 30 kHz |
| MIDI I/O | |
| Type | Dual 5-pin female DIN |
| Digital Audio | |
| ADC Dynamic Range (A-wtd, 48 kHz Sample Rate) | 105 dB |
| DAC Dynamic Range (A-wtd, 48 kHz Sample Rate) | 105 dB |
| Bit Depth | 24 |
| Reference Level for 0 dBFS | +10 dBu |
| Internal Sample Frequency Selections (kHz) | 44.1, 48, 88.2, 96 |
| Power | USB bus-powered |
| Physical | |
| Height | 1.71” (43.5 mm) |
| Depth | 5.31″ (135 mm) |
| Width | 7.56” (192 mm) |
| Weight | 1.35 lbs (0.62 kg) |
