Original price was: RM1,560.00.Current price is: RM1,404.00.

Accessories

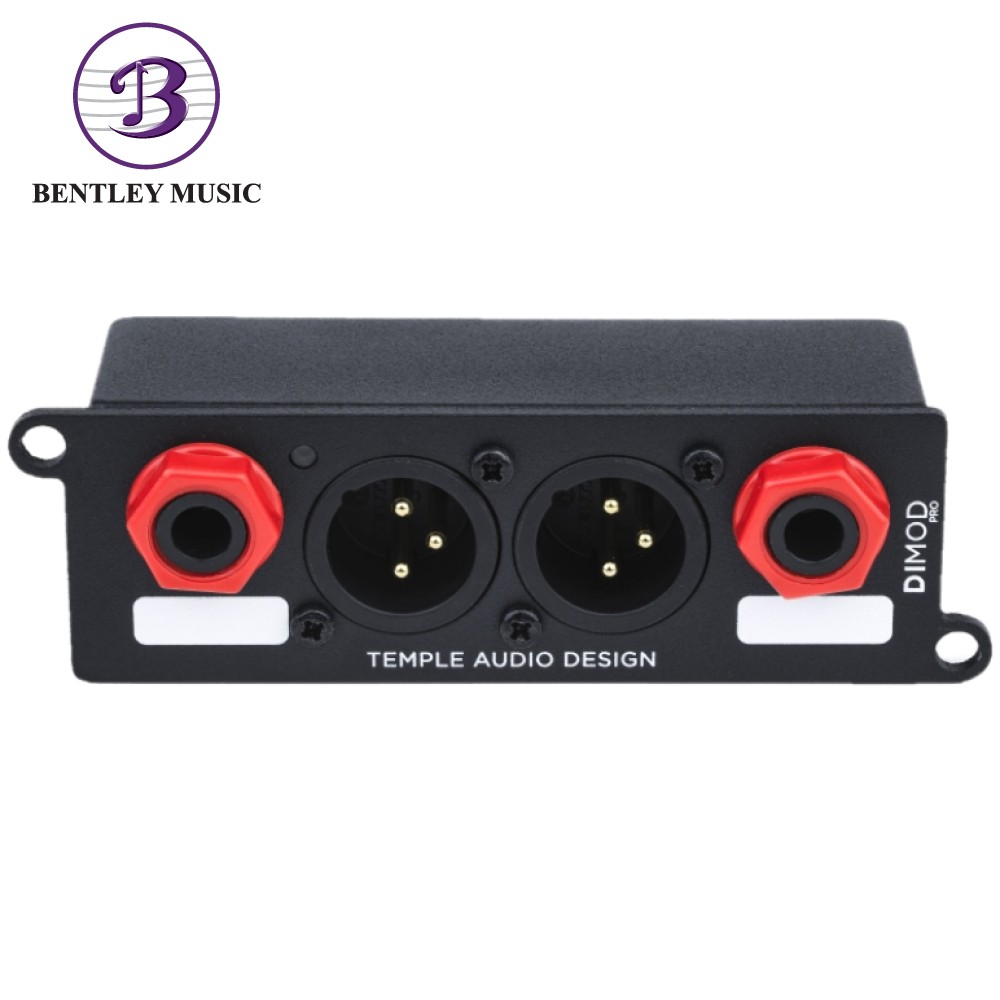

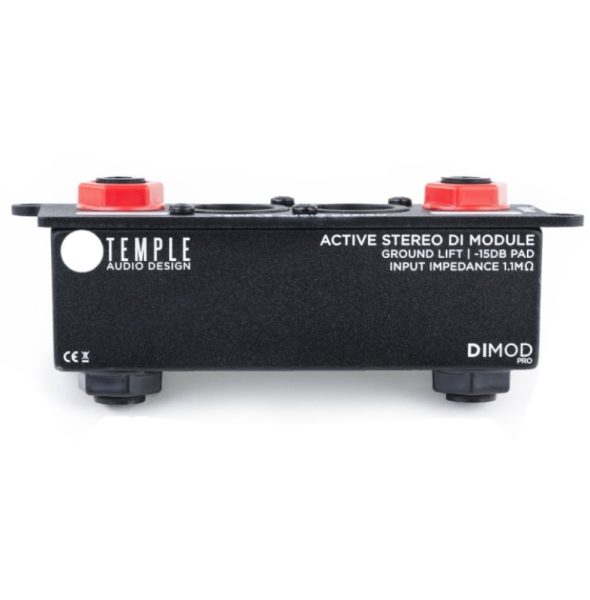

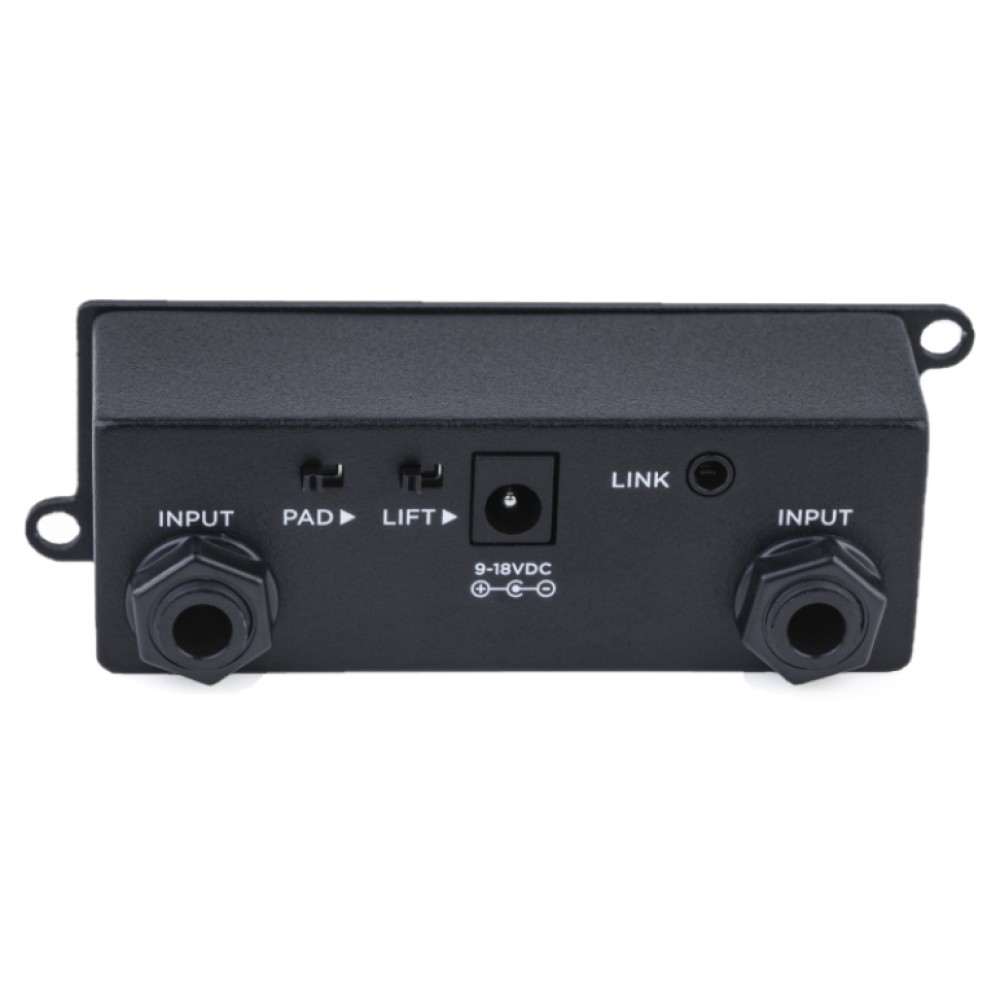

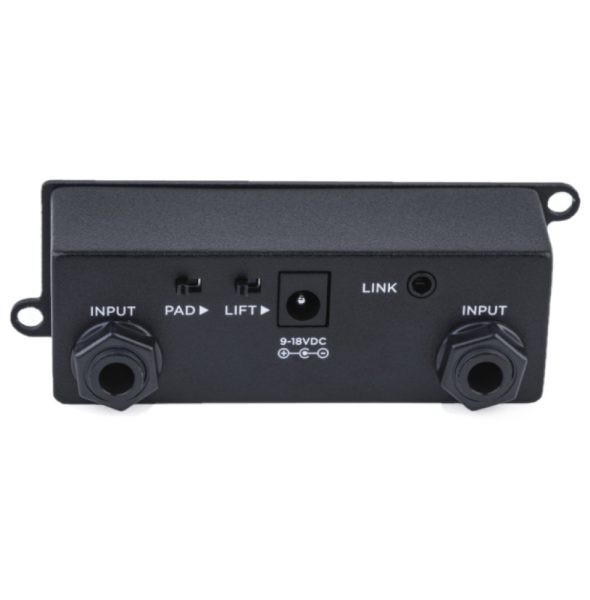

Temple Audio MODDIPRO Active Stereo DI Box Module

The Temple Audio MOD DI Pro is an active, stereo direct box module designed for Templeboards. It converts two unbalanced 1/4″ signals from your pedalboard into two balanced XLR outputs, which are essential for sending a clean, noise-free signal to a front-of-house mixer or recording interface. This module also features two parallel 1/4″ “thru” jacks to simultaneously send your signal to your on-stage amplifiers. With built-in ground lift and -15dB pad switches, it effectively eliminates hum and handles high-output signals. It provides a professional, integrated solution for live and studio applications.



Model: MODDIPRO



SPECIFICATIONS

Power Requirements

42mA at 9VDC, 48mA at 18VDC

Frequency Response

20Hz to 50kHz +/- 0.1 dB into 2.5k load

Input Impedance

1.1MΩ

Output Impedance

105Ω

Pad Attenuation

-15dB
