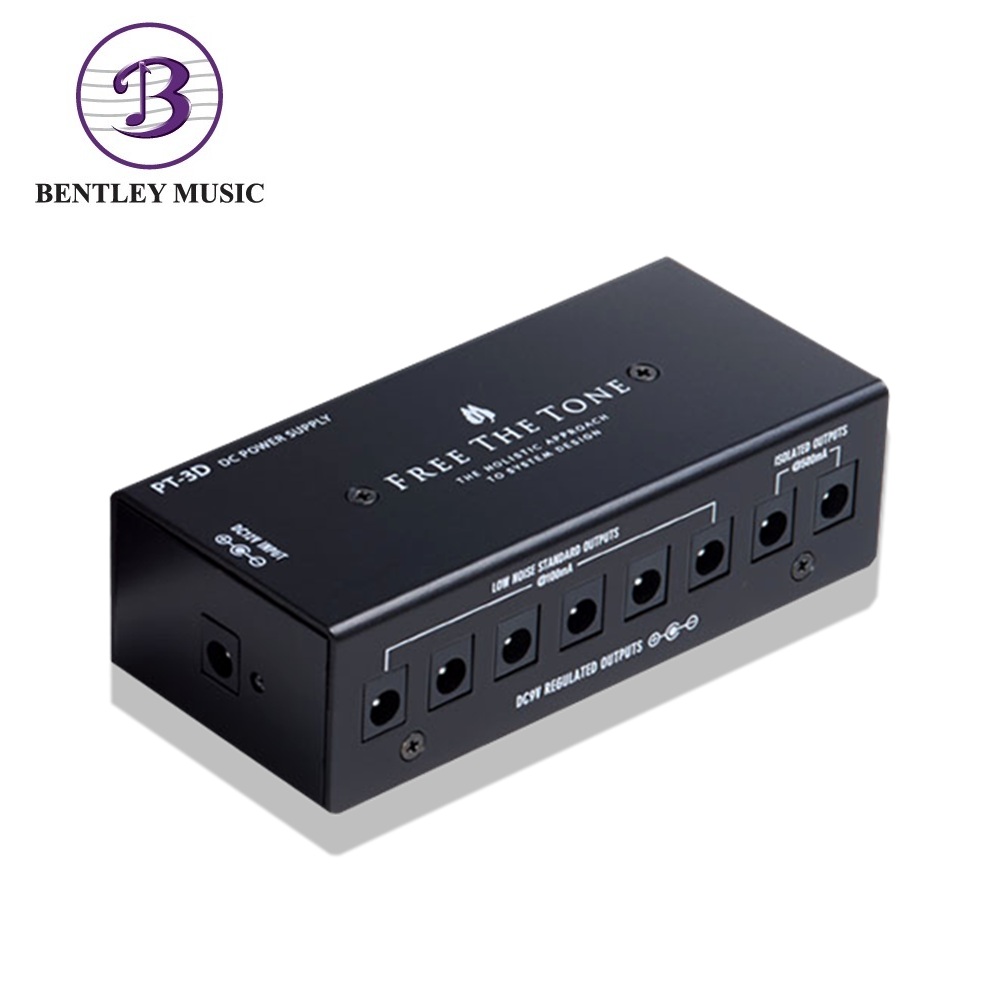

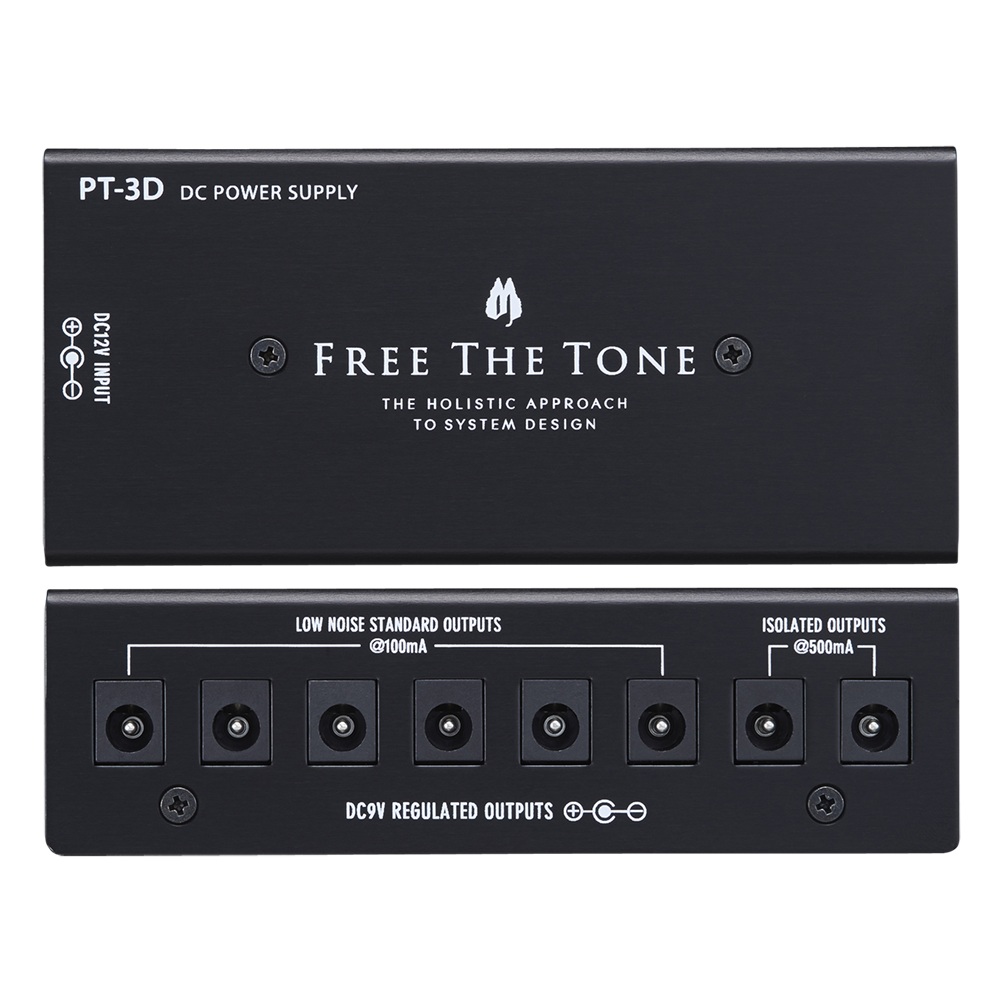

Free The Tone PT-3D Power Supply
Although it is light and compact, the PT-3D furnishes two completely independent isolated output terminals (9 VDC/500 mA) and six low-noise standard output terminals (9 VDC/100 mA) and can power up to eight lines.
The PT-3D’s isolated output terminals can supply current higher than 1 A momentarily required by some digital effects units on boot. After booting of the units, the PT-3D can stably continue to supply required amperage up to 500 mA.
This makes the PT-3D, which is designed to supply 9 VDC, applicable to effects units requiring high capacity current.
Model: PT-3D
SPECIFICATIONS
2× Stabilized 9 VDC isolated output terminals (@ max. 500 mA)
6× Stabilized 9 VDC low-noise standard output terminals (@ max. 100 mA)
Short-circuit protection circuit in each output
Dimensions: 120W × 55D × 35H mm (excl. rubber feet)
Weight: approx. 185 g (excl. accessories)
Accessories: warranty card, manual, 4× DC cables (L = 30 cm, L/L), 4× DC cables (L = 50 cm, L/L), 1× AC adapter (FA-1220D-JA/UK/EU)
